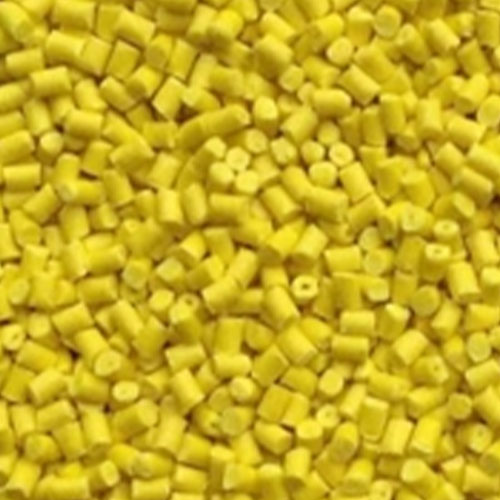

PA66 M2400A

1. Automotive Industry

• Powertrain Components: Suitable for high-temperature engine parts like turbocharger housings and radiator tanks; withstands oil temperatures above 180°C and reduces weight by up to 40%.

• Lightweight Structural Parts: Used as metal replacements for suspension control arms and body brackets; 33% glass fiber reinforced grade achieves tensile strength of 180 MPa, comparable to aluminum alloys.

• New Energy Components: High-flow grades fit motor end covers and battery brackets; molding cycle shortened by 12%, yield rate improved to 98%.

2. Electronics & Electrical

• High-Voltage Connectors: Ultra-high purity grades (<50 ppm impurities) for 800V EV high-voltage wiring harnesses; volume resistivity >10¹⁴ Ω·cm ensures stable insulation under extreme conditions.

• Flame-Retardant Components: V0 flame-retardant grades used in mirror housings and switch covers; FMVSS 302 certified to suppress flame spread.

3. Industrial Machinery

• Wear-Resistant Transmission Parts: Gears and bearings for high-load applications; 30% glass fiber reinforced grade with tensile strength ≥200 MPa and flexural modulus >8000 MPa.

• Fluid Equipment: Pump impellers and valve distributors with chemical resistance and compressive strength >155 MPa, suitable for high-pressure water pump systems.

4. Specialty Applications

• Rail Transit: Toughened grades for insulating sleeves in railway switches; impact strength >80 kJ/m² ensures insulation and buffering between concrete sleepers and rails.

• Precision Engineering: Low-warp mineral composite grades for sensor brackets and miniaturized electronic components; dimensional stability improved by 30%.

5. Processing & Modification Recommendations

• Injection Molding: Melt temperature 260–300°C, mold temperature 80–120°C, back pressure 0.5–2.0 MPa to optimize melt flow.

• Modification: Long glass fiber reinforcement (up to 50%) for aerospace structural parts; conductive carbon fiber added to meet antistatic requirements.
