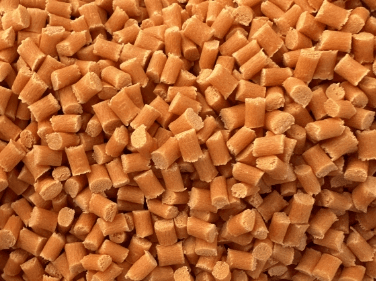

PA66/M2115AL-HSL

PA66 M2115AL-HSL Industrial Applications

1. Automotive Industry

• High-Temperature Powertrain Parts: Turbocharger housings, radiator tanks; withstand oil temperatures above 180°C, ensuring long-term structural stability.

• Lightweight Structural Replacement: 15% glass fiber reinforced (tensile strength ≥180 MPa) substitutes metal cast brackets and suspension links, reducing weight and improving corrosion resistance.

• New Energy Components: EV battery module brackets and high-voltage harness fixtures, meeting dimensional precision and UL94 V0 flame retardancy.

2. Electronics & Electrical

• Precision Connectors & Insulators: Connector housings, switch contact supports with volume resistivity >10¹⁴ Ω·cm for reliable high-voltage insulation.

• Flame-Retardant Housings: For mirror shells, electrical switch boxes, certified to FMVSS 302 to reduce fire risk.

3. Industrial Machinery

• Wear-Resistant Transmission Parts: Gears, bearings with bending modulus >6000 MPa after glass fiber reinforcement, reducing wear over long-term use.

• Fluid System Components: Corrosion-resistant valve distributors and pump impellers with compressive strength >150 MPa for high-pressure chemical transport.

4. Rail Transit & Construction

• Railway Buffer Components: Toughened parts for gauge stop seats and insulated switch sleeves, impact strength >50 kJ/m² to cushion stress between rails and sleepers.

• Engineering Structural Parts: Pipe connectors and outdoor support brackets with weather resistance and mechanical strength for harsh environments.

5. Consumer Goods & Sealing

• Tools & Sports Equipment: Electric tool housings, bicycle brackets balancing lightweight and impact resistance (notched impact strength >50 J/m).

• Sealing Materials: High-pressure water pump seals and flange gaskets with excellent oil resistance and compression recovery for extended service life.

Processing & Modification Suggestions

• Injection Molding: Melt temperature 260–280°C, mold temperature 80–95°C; pre-dry at 80°C for 4–6 hours to control moisture absorption.

• Reinforcement: Glass fiber content 15–30% to optimize mechanical properties; use release agents to improve surface finish.
