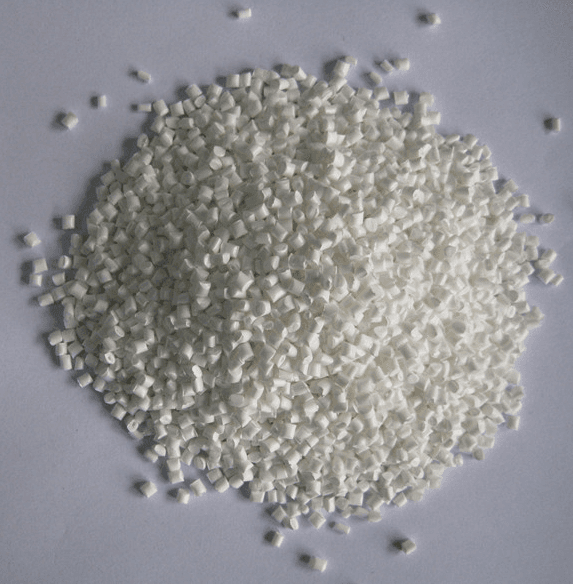

PA66 M2233AL

PA66 M2233AL Industrial Applications

1. Automotive Industry

• High-Temperature Powertrain Parts: Turbocharger housings, radiator tanks; withstand oil temps above 180°C with long-term structural stability.

• Lightweight Structural Components: 33% glass fiber reinforced (tensile strength ≥200 MPa) to replace metal in suspension control arms and body brackets, reducing weight by over 30% while ensuring corrosion resistance.

• New Energy Battery Components: EV battery module housings and brackets, meeting dimensional stability and UL94 V0 flame retardancy under high-voltage conditions.

2. Electronics & Electrical

• High-Voltage Connectors & Insulators: 800V charging ports and wiring harness housings, volume resistivity >10¹⁴ Ω·cm, ensuring insulation reliability under extreme currents.

• Flame-Retardant Precision Parts: V0 flame retardant grades for switch contacts and mirror housings, FMVSS 302 certified to prevent fire spread.

3. Industrial Machinery

• High-Load Transmission Parts: Gears, bearings with flexural modulus >8000 MPa and tensile strength ~200 MPa after glass fiber reinforcement, reducing wear and extending service life.

• Chemical Fluid Equipment: High-pressure pump impellers and valve distributors, chemical-resistant with compressive strength >150 MPa, suited for chemical industry demands.

4. Consumer & Construction Applications

• Power Tools & Sports Equipment: Tool housings and bicycle pedal brackets balancing light weight and impact resistance (notched impact strength >50 kJ/m²).

• Building & Outdoor Structural Parts: Pipe connectors and support brackets with weather resistance and mechanical strength for long-term outdoor use.

Processing & Modification Recommendations

• Injection Molding: Melt temp 260–290°C, mold temp 80–100°C; pre-dry at 80°C for 4–6 hours to control moisture.

• Reinforcement & Flame Retardancy: 33% glass fiber for mechanical strength; flame retardants (e.g., FR15) can be added to meet strict fire safety standards.
